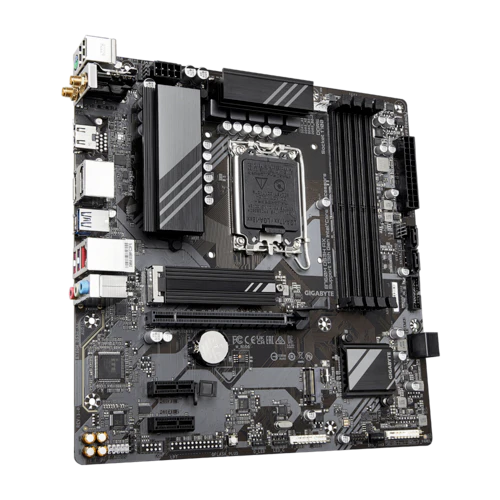

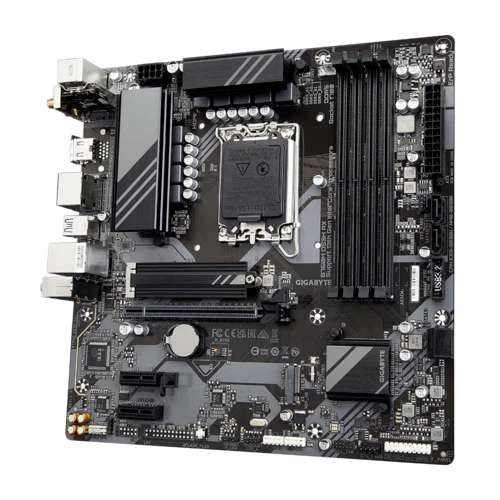

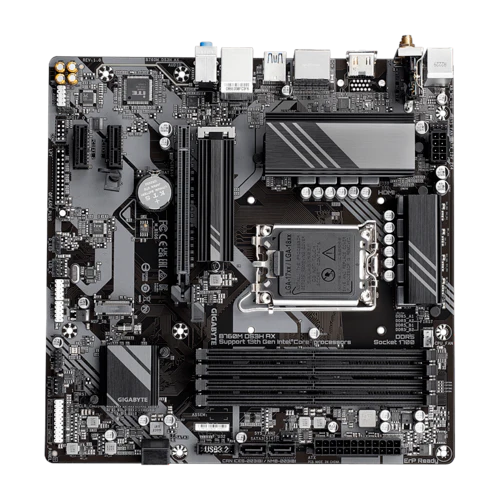

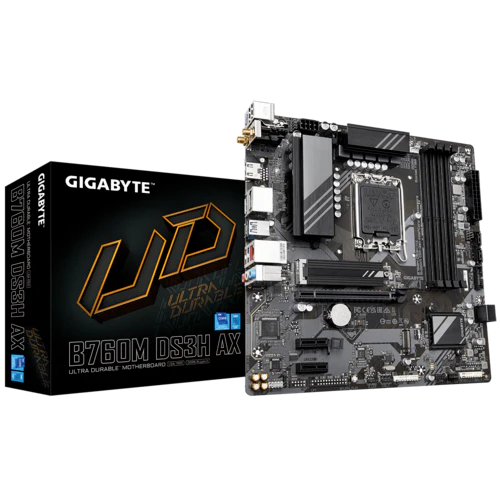

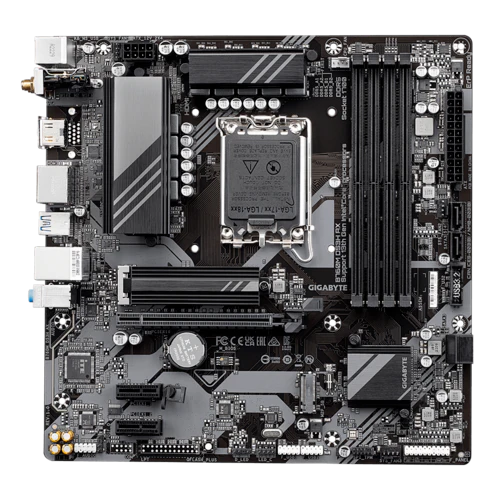

GIGABYTE B760M DS3H AX DDR5 Motherboard Supports Intel Core 12th-13th-14th Gen CPUs With 2xPCIe 4.0 M.2 Slots and DDR5 Memory

The GIGABYTE B760M DS3H AX DDR5 motherboard is engineered for advanced performance, supporting Intel Core 12th, 13th, and 14th generation processors. It features dual PCIe 4.0 M.2 slots for high-speed NVMe storage and DDR5 memory compatibility, ensuring faster data transfer and improved system responsiveness. This motherboard offers a solid foundation for building a powerful, future-proof PC with enhanced connectivity and memory capabilities tailored for demanding computing tasks.

Specification	Details
CPU Support	14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron® (LGA1700)
Chipset	Intel® B760 Express
Memory	4 x DDR5 DIMM, up to 256 GB, dual channel, ECC/non-ECC unbuffered, XMP support
Graphics	1x D-Sub, 1x HDMI 2.1, 2x DisplayPort 1.2 (max quad-display)
Audio	Realtek® Audio CODEC, 7.1-channel, S/PDIF Out
LAN	Realtek® 2.5GbE LAN
Expansion Slots	1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
Storage	2 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s, RAID 0/1/5/10
USB	1 x USB-C 3.2 Gen 2, 5 x USB 3.2 Gen 1, 6 x USB 2.0
Internal I/O	24-pin & 8-pin power, 3 x sys fan, CPU fan, ARGB/RGB headers, TPM, USB headers, etc.
Back Panel	USB-C, USB 3.2, USB 2.0, PS/2, D-Sub, HDMI, 2x DP, LAN, 3x audio jacks
Monitoring	Voltage, Temp, Fan speed/control, Water flow rate
BIOS	128 Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus
Software	GIGABYTE Control Center, Norton® Internet Security, LAN mgmt software
OS Support	Windows 10/11 64-bit
Form Factor	Micro ATX, 24.4cm x 24.4cm
