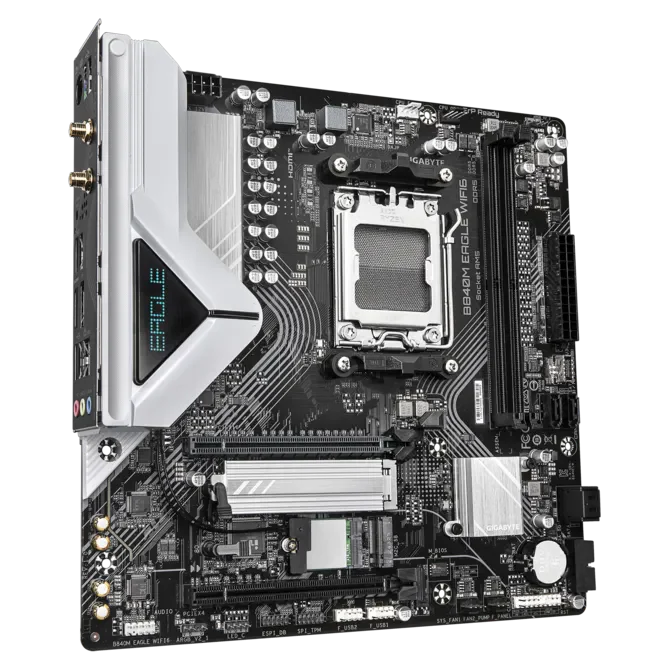

Gigabyte B840M EAGLE WIFI6 AM5 DDR5 Motherboard

Harness the power of next-generation computing with the Gigabyte B840M EAGLE WIFI6 AM5 DDR5 Motherboard. Built for the latest Ryzen processors, this compact yet capable micro-ATX board delivers exceptional performance with DDR5 memory support and PCIe 5.0 connectivity. Integrated WiFi 6 ensures blazing-fast wireless speeds, while robust power delivery and advanced cooling solutions keep your system stable under load. Perfect for builders seeking a balance of features, reliability, and value in a space-efficient form factor.

Specifications
CPU Socket	AMD AM5
CPU Support	Ryzen 9000 / 8000 / 7000 Series
Chipset	AMD B840
Memory	2× DDR5 DIMM, up to 128GB DDR5 7600(O.C.) ~ 4400 MT/s Dual Channel, EXPO & XMP
Integrated Graphics	1× DisplayPort 1.4 (4K@144Hz) 1× HDMI 2.1 (4K@60Hz)
Audio	Realtek® Audio Codec, 7.1-Channel HD Audio
LAN	Realtek® 2.5GbE
Wireless	Wi-Fi 6 (RTL8851BE) Bluetooth 5.3
Expansion Slots	1× PCIe 4.0 x16 (CPU) 1× PCIe 3.0 x4 (Chipset)
Storage	2× M.2 Slots 4× SATA 6Gb/s RAID 0/1/10 (NVMe & SATA) RAID 5 (Ryzen 9000 only)
USB Ports	Rear: 2× USB 3.2 Gen1, 4× USB 2.0 Internal: USB-C Gen1, USB 3.2 Gen1, USB 2.0
Internal Connectors	24-pin ATX, 8-pin CPU 4× Fan / Pump Headers ARGB Gen2 ×2, RGB ×1
Back Panel I/O	PS/2, DisplayPort, HDMI USB 3.2 Gen1 ×2, USB 2.0 ×4 2.5Gb LAN, Audio Jacks
BIOS	256Mb AMI UEFI, Q-Flash Plus
Operating System	Windows 11 / Windows 10 64-bit
Form Factor	Micro-ATX (24.4 × 24.4 cm)
