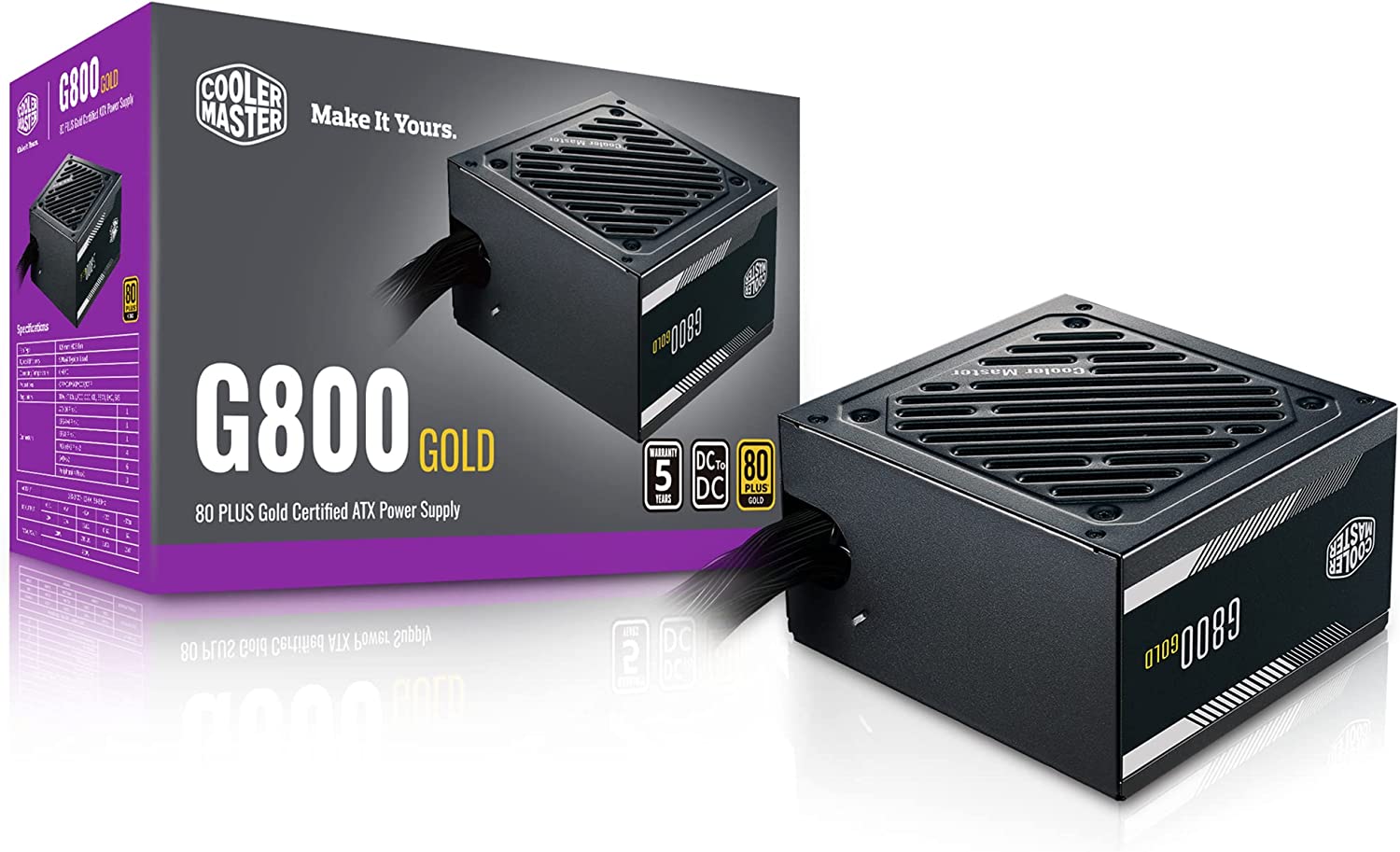

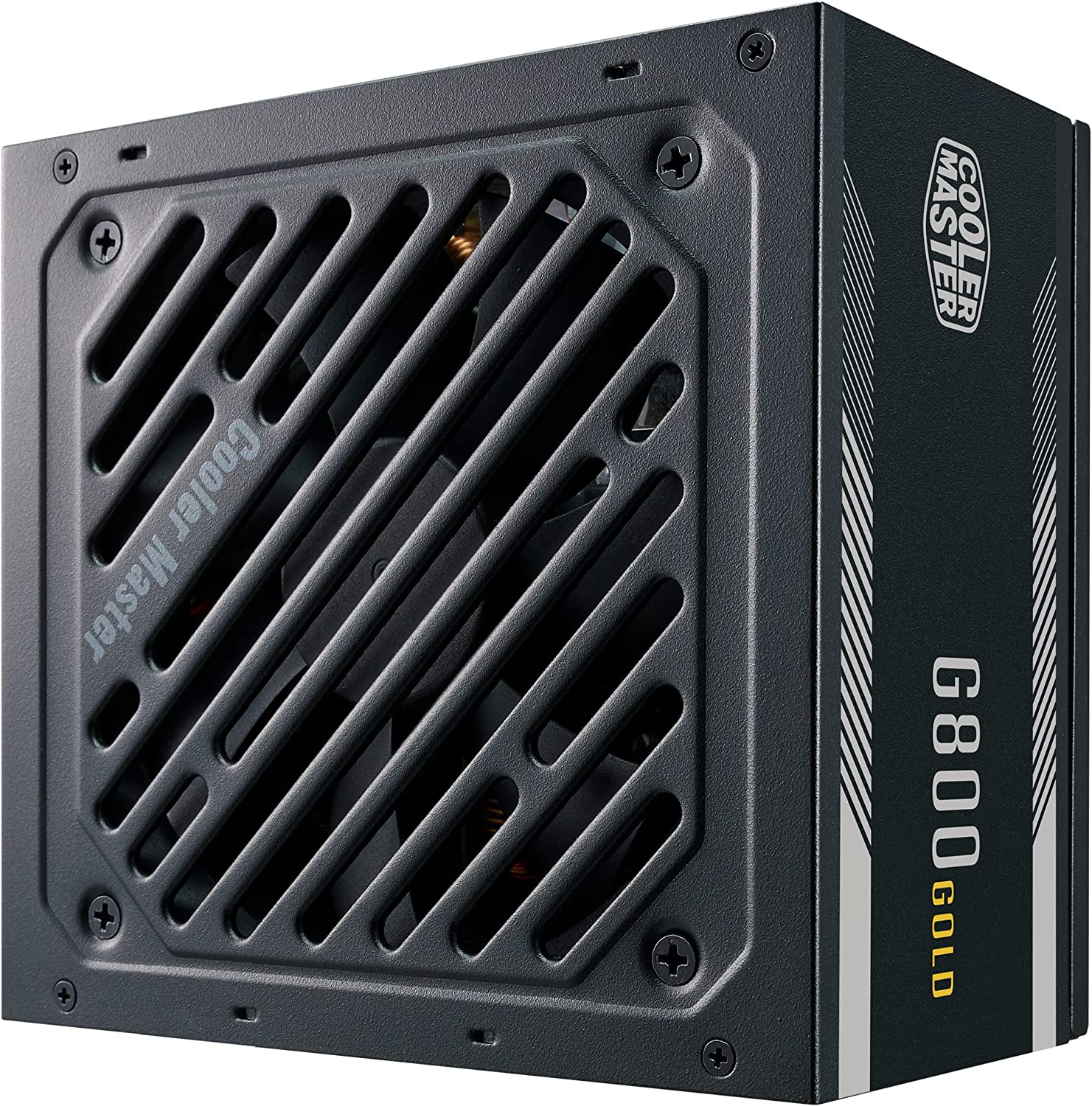

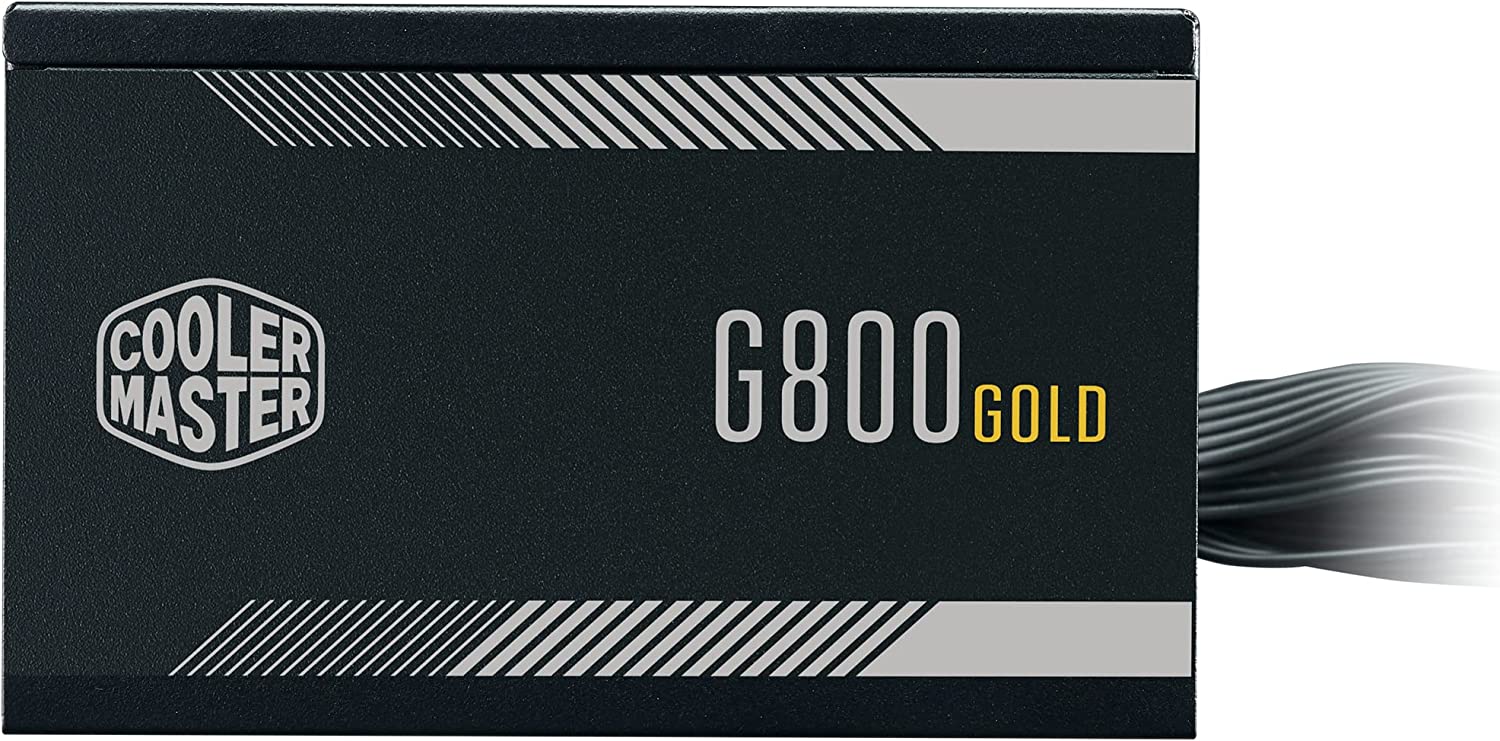

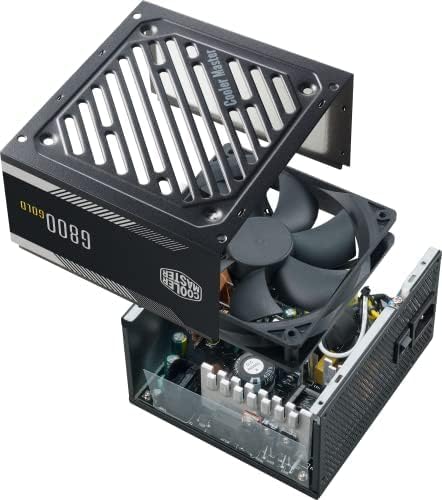

Cooler Master G800 Gold - 800W 80 Plus Gold Certified Power Supply
The Cooler Master G800 Gold delivers reliable 800W power with 80 Plus Gold certification, ensuring high energy efficiency and stable performance for demanding systems. Designed for professionals and enthusiasts, it features premium components that enhance durability and reduce heat. This power supply supports a wide range of hardware configurations, providing consistent power delivery and protecting your components with advanced safety features. Ideal for building or upgrading high-performance PCs with confidence.
Power Supply Specifications – G Series 800W 80+ Gold
| Series | G Series |
| Power Output | 800W |
| 80 PLUS Rating | Gold |
| Efficiency | ≥90% @ Typical Load |
| Modularity | Non Modular |
| Form Factor | ATX 12V V2.52 |
| Input Voltage | 100-240V |
| Input Frequency | 47-63Hz |
| Input Current | 10-5A |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥15ms at 100% load |
| PFC | Active PFC |
| ATX 24 Pin | 1 |
| EPS 4+4 Pin | 1 |
| EPS 8 Pin | 1 |
| PCI-e 6+2 Pin | 4 |
| SATA Connectors | 6 |
| Peripheral 4 Pin | 3 |
| Dimensions | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB (Hydro Dynamic Bearing) |
| Operating Temp | 0-40°C |
| MTBF | >100,000 Hours |
| Approvals | CCC, CE, EAC, cTUVus, FCC, BSMI, CB, TUV, RoHS2.0, KC+KCC, BIS |
| ErP 2014 Lot 3 | Yes |
| Protections | Over Voltage Protection (OVP) Under Voltage Protection (UVP) Over Power Protection (OPP) Short Circuit Protection (SCP) Over Current Protection (OCP) Over Temperature Protection (OTP) |
Original: $100.00
-65%$100.00
$35.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Cooler Master G800 Gold delivers reliable 800W power with 80 Plus Gold certification, ensuring high energy efficiency and stable performance for demanding systems. Designed for professionals and enthusiasts, it features premium components that enhance durability and reduce heat. This power supply supports a wide range of hardware configurations, providing consistent power delivery and protecting your components with advanced safety features. Ideal for building or upgrading high-performance PCs with confidence.
Power Supply Specifications – G Series 800W 80+ Gold
| Series | G Series |
| Power Output | 800W |
| 80 PLUS Rating | Gold |
| Efficiency | ≥90% @ Typical Load |
| Modularity | Non Modular |
| Form Factor | ATX 12V V2.52 |
| Input Voltage | 100-240V |
| Input Frequency | 47-63Hz |
| Input Current | 10-5A |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥15ms at 100% load |
| PFC | Active PFC |
| ATX 24 Pin | 1 |
| EPS 4+4 Pin | 1 |
| EPS 8 Pin | 1 |
| PCI-e 6+2 Pin | 4 |
| SATA Connectors | 6 |
| Peripheral 4 Pin | 3 |
| Dimensions | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | HDB (Hydro Dynamic Bearing) |
| Operating Temp | 0-40°C |
| MTBF | >100,000 Hours |
| Approvals | CCC, CE, EAC, cTUVus, FCC, BSMI, CB, TUV, RoHS2.0, KC+KCC, BIS |
| ErP 2014 Lot 3 | Yes |
| Protections | Over Voltage Protection (OVP) Under Voltage Protection (UVP) Over Power Protection (OPP) Short Circuit Protection (SCP) Over Current Protection (OCP) Over Temperature Protection (OTP) |
