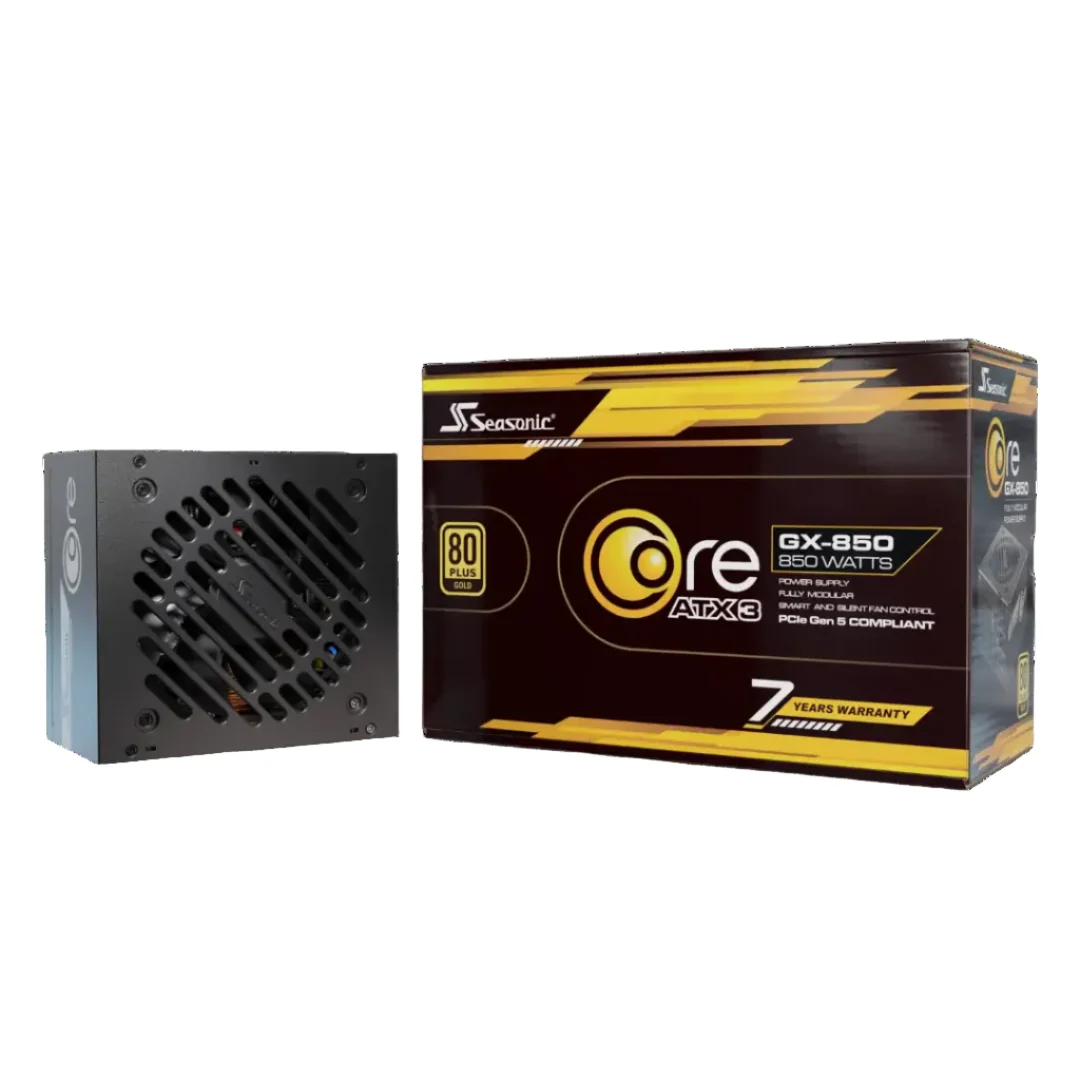

Seasonic Core Gx-850 850W Atx 3.1 fully modular 80+ Gold Power Supply

The updated Seasonic CORE GX ATX 3.1 Series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 3-year worldwide manufacturer’s warranty.

Technical Specifications
80PLUS®		Gold
Cybenetics Efficiency Level		Platinum
Cybenetics Noise Level		A-
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	Smart and Silent Fan Control
	Fan Bearing	Hydro Dynamic Bearing
	Life Expectancy	25,000 hours at 40 °C, 15 % — 65 % RH
Cable Information	Modularity	Fully Modular
	Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OCP, OPP, OTP, OVP, SCP, UVP
Safety and Environmental	Safety and EMC	BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
	Environmental Compliance	Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Warranty		3 Years

Power Output
AC Input	100 V - 240 V
	11 - 5.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	70 A	0.3 A	3 A
		100 W		840 W	3.6 W	15 W
	Total continuous power	850 W
