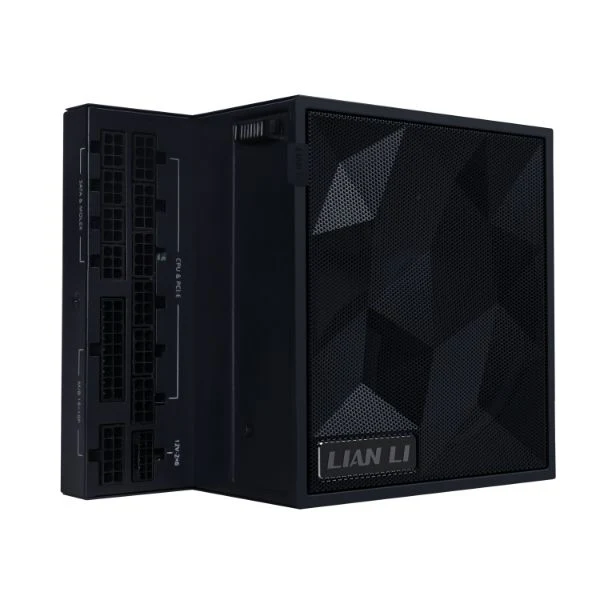

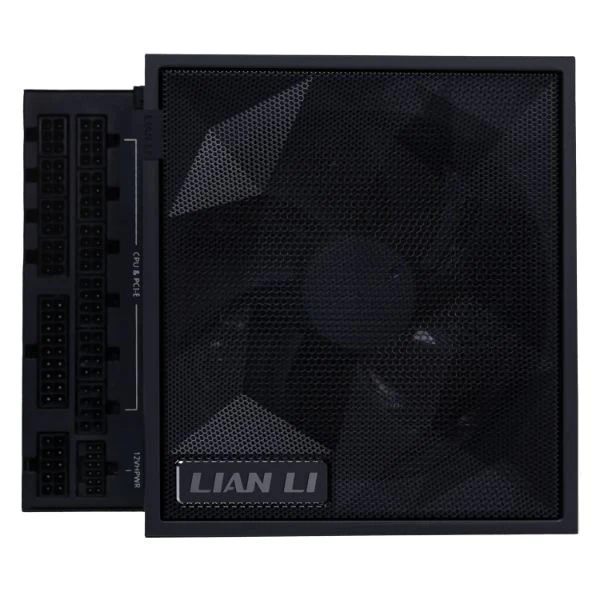

Lian Li EG0850G Edge 850W Fully Modular ATX 3.1 PSU – 80 Plus Gold Certified

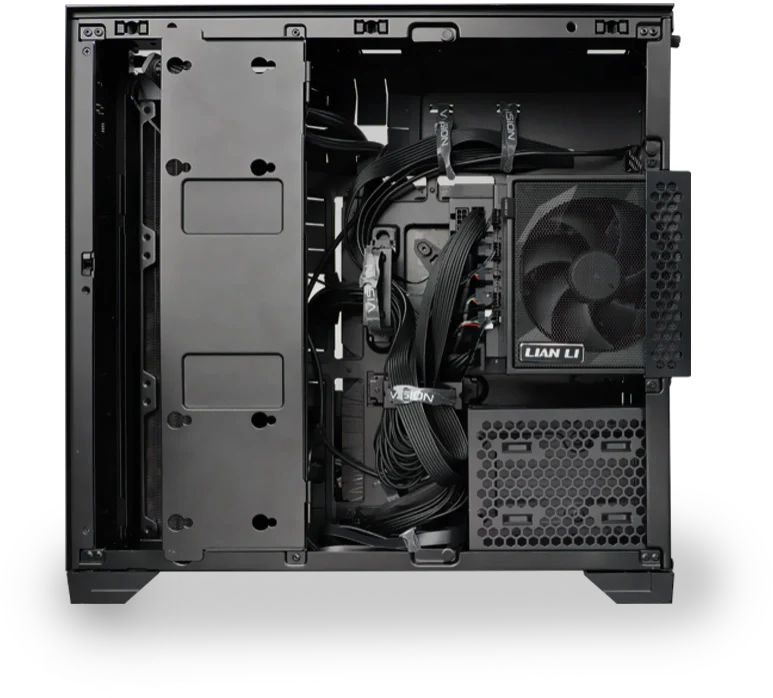

The Lian Li EDGE Gold 850W PSU is engineered for dual chamber cases like the LIAN LI O11 series, featuring an innovative L-shape design that orients connectors outward for streamlined cable management and a cleaner aesthetic. Certified 80 PLUS GOLD and Cybenetics GOLD, this PSU delivers exceptional energy efficiency, reducing power consumption and heat output for optimal system performance. The removable magnetic dust filter enables effortless maintenance, keeping your build dust-free while maintaining superior airflow. The 120mm FDB fan operates silently with a fanless mode during low-load conditions for whisper-quiet operation. Fully modular braided cables come pre-fitted with cable combs on motherboard, CPU, and GPU connectors, ensuring a professional, organized build every time. Built with premium German industrial-grade EPCOS capacitors (or equivalent Japanese alternatives), this PSU guarantees robust performance and exceptional temperature tolerance. PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals for future-proof compatibility. Comprehensive protection—OCP, OVP, SCP, OTP, OPP, UVP, SIP, NLO, and inrush current limiting—ensures stable, safe power delivery to all components. The detachable USB hub provides 4 internal USB 2.0 headers and 6 PWM headers for enhanced connectivity and control.

---

Specs:

Model: EG0850G
Dimensions: 182mm (D) x 86mm (W) x 150mm (H)
Material: Steel
Form Factor: ATX 3.1
Max Power Output: 850W
Combined +3.3V & +5V: 120W
Combined +12V: 849W
Input Voltage: 100-240Vac
Input Frequency: 50-60Hz
Efficiency: Up to 90.71%
Fan Speed: Up to 2400 RPM
Fan Noise Level: 39.3 dBA

---

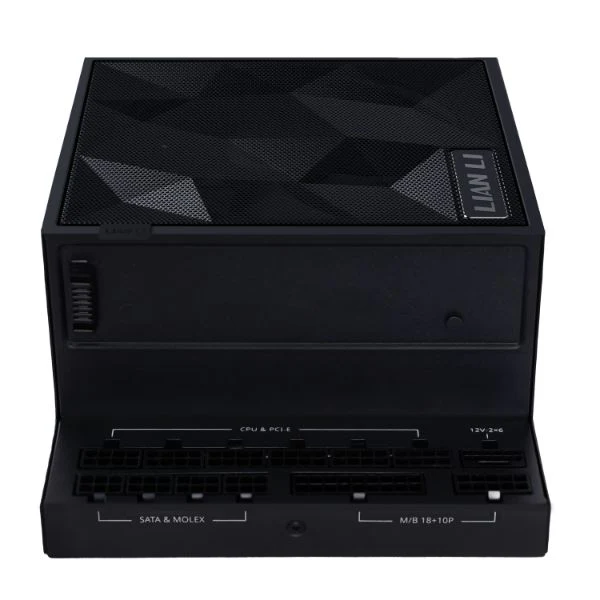

Connectors

• 1 x 24/20-pin motherboard connector (620mm)

• 1 x 8-pin CPU/ATX 12V connector (750mm)

• 1 x 4+4-pin CPU connector (750mm)

• 1 x 6+2-pin GPU connector (650mm + 100mm)

• SATA connectors and Y-type SATA connectors with various lengths

• 4 x 4-pin Peripheral connectors (500mm + extensions)

• 1 x 12V – 2×6 450W connector (650mm)
