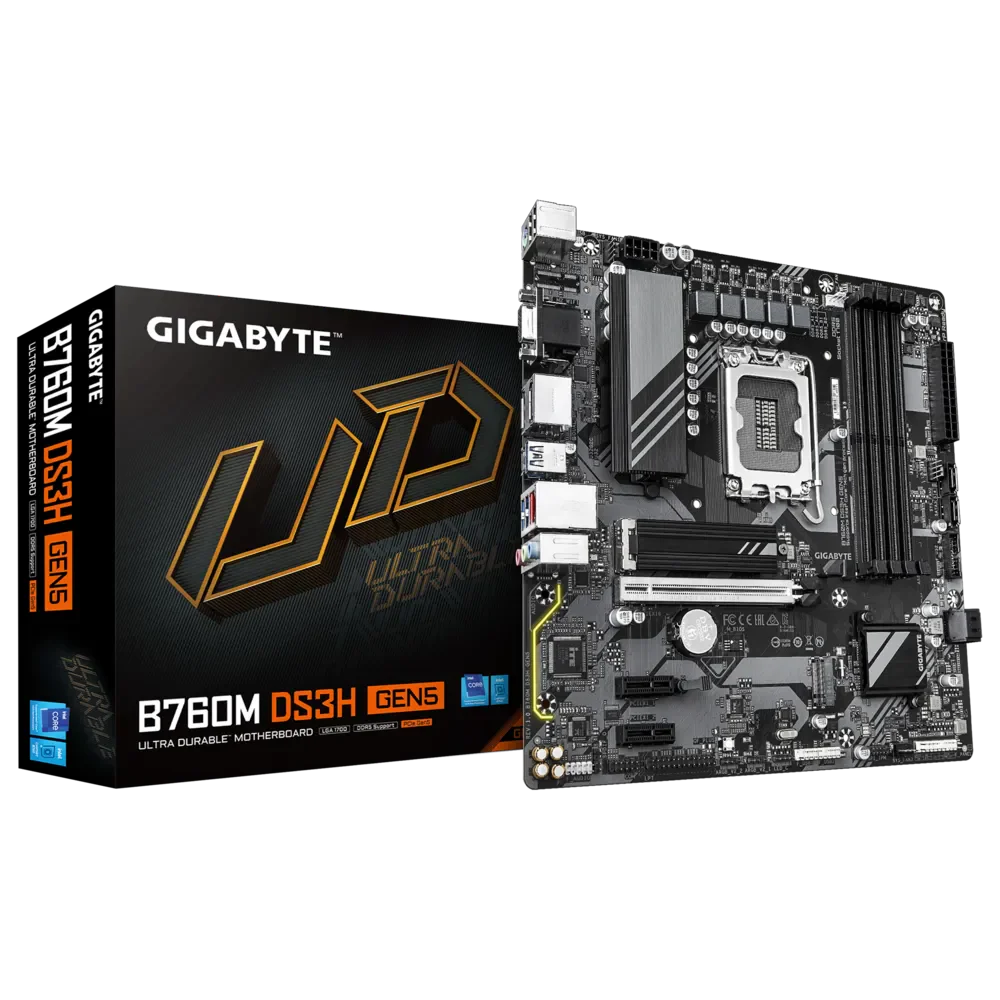

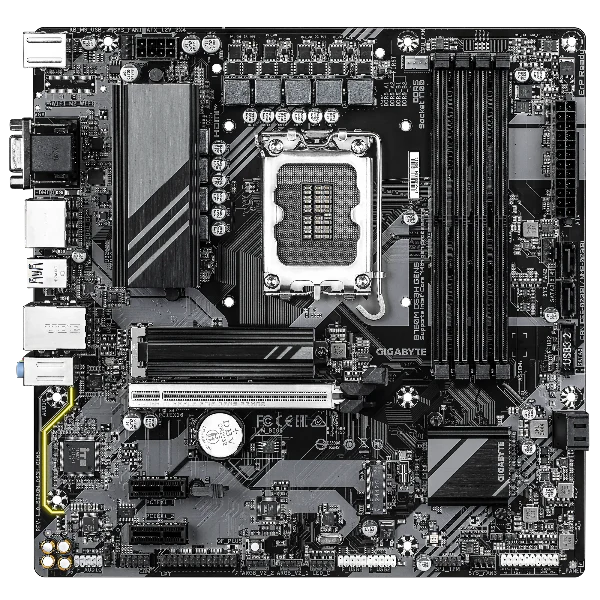

GIGABYTE B760M DS3H GEN5 DDR5 PCIe 5.0 x16 Slot Intel LGA1700 Motherboard

The GIGABYTE B760M DS3H GEN5 DDR5 motherboard is engineered for advanced performance, supporting Intel Core 12th, 13th, and 14th generation processors. It features a PCIe 5.0 x16 slot for next-level graphics and two PCIe 4.0 M.2 slots, enabling high-speed storage solutions. Designed for professionals seeking reliable and future-proof hardware, this motherboard ensures efficient data transfer and robust system stability.

Specification	Details
Socket	LGA1700
CPU Support	14th, 13th, and 12th Gen Intel Core / Pentium Gold / Celeron
Chipset	Intel B760 Express
Memory Support	DDR5 up to 5600MT/s (i9/i7), up to 4800MT/s (i5/i3)
Max Memory	256 GB (4x DDR5 DIMMs)
Graphics Outputs	1x HDMI 2.1, 1x DisplayPort 1.2
Audio	Realtek Audio CODEC, 7.1-channel, S/PDIF Out
LAN	Realtek 2.5GbE
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 3.0 x4
Storage	2x M.2 (PCIe 4.0), 4x SATA 6Gb/s, RAID 0/1/5/10
USB Ports	1x USB-C 3.2 Gen2, 5x USB 3.2 Gen1, 9x USB 2.0
Internal I/O	2x M.2, 4x SATA, USB headers, RGB/ARGB, Q-Flash, TPM

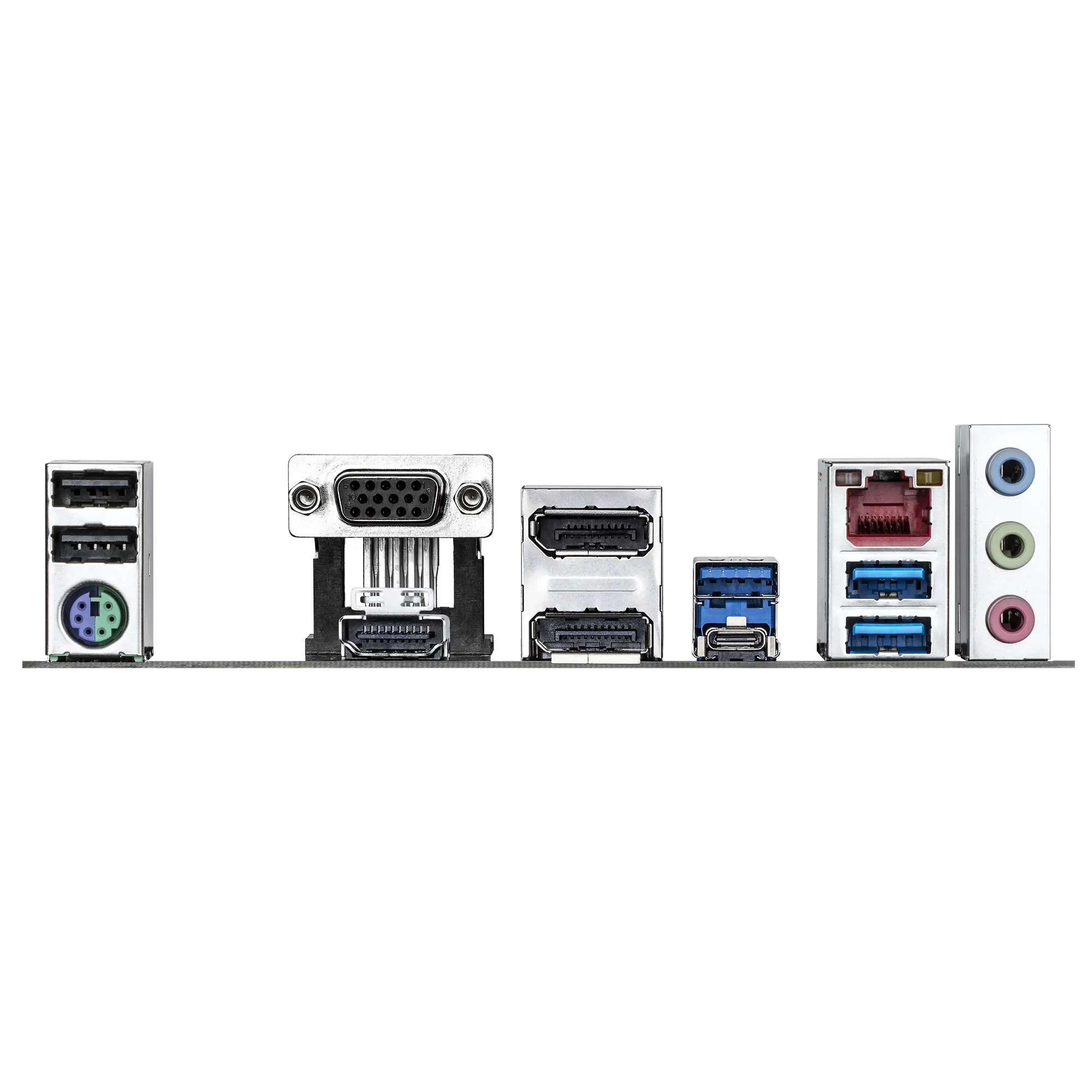

Back Panel I/O	HDMI, DP, 3x USB 3.2, 5x USB 2.0, LAN, 3x Audio
BIOS	256Mbit Flash, AMI UEFI, Q-Flash Plus
Form Factor	Micro ATX (24.4cm x 24.4cm)
OS Support	Windows 11/10 64-bit
