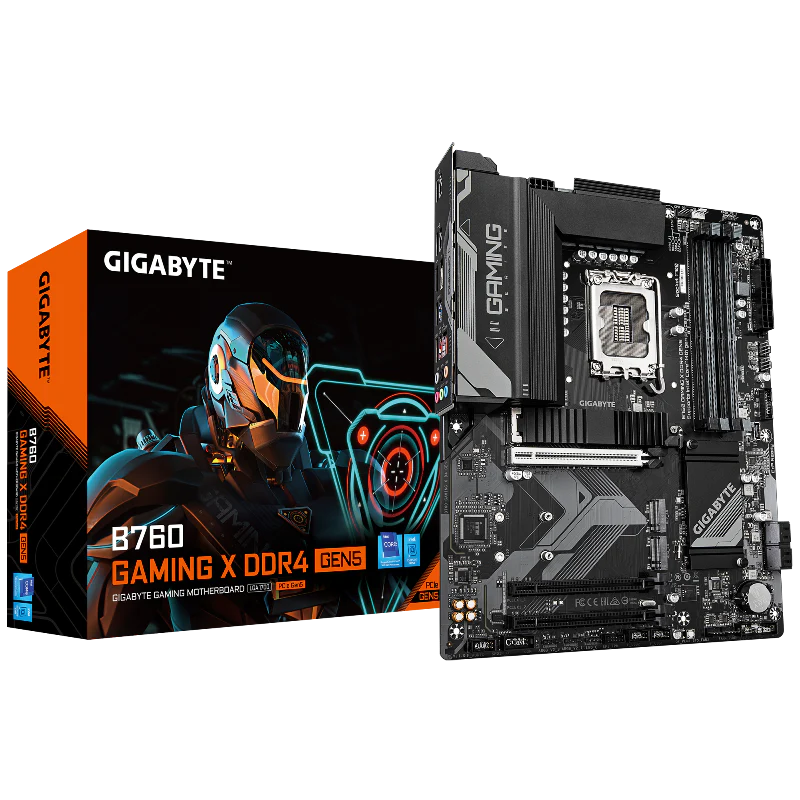

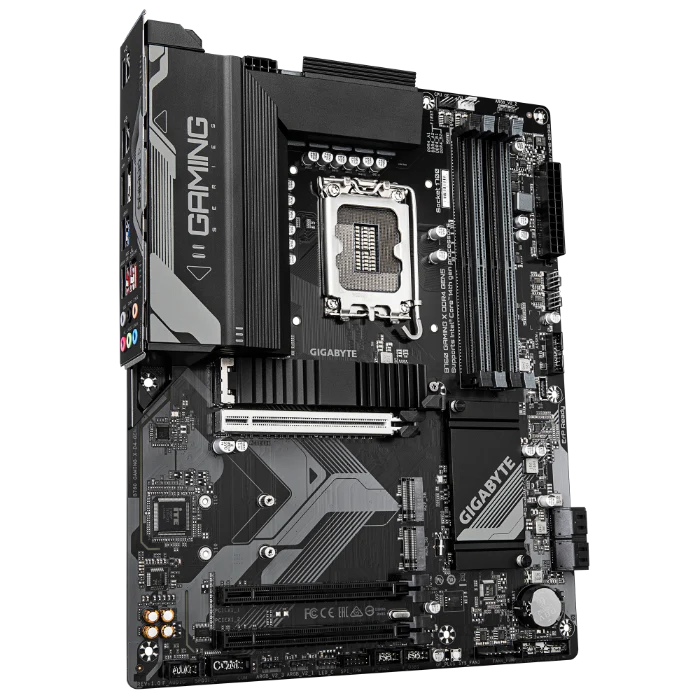

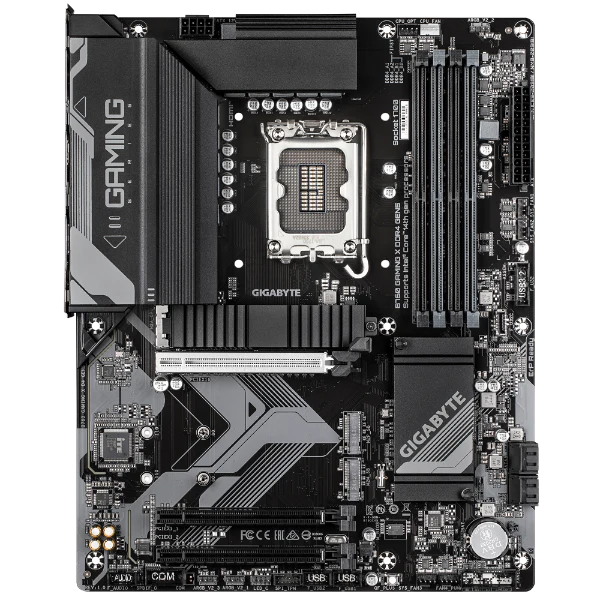

GIGABYTE B760 GAMING X DDR4 GEN5 intel LGA1700 Motherboard
The GIGABYTE B760 GAMING X DDR4 motherboard combines high performance and stability for gaming and professional workstations. It is compatible with 12th and 13th generation Intel LGA1700 processors. Key features include: full support for high-speed DDR4 memory; PCIe Gen5 connectivity for ultra-fast data transfer; optimized power stages for improved stability; advanced cooling for sensitive components; multiple USB 3.2 ports and M.2 slots for rapid expansion; and an intuitive BIOS interface with comprehensive configuration options. It is ideal for building powerful gaming rigs or professional workstations with reliable performance and excellent value.
| Brand | GIGABYTE |
| Chipset | Intel® B760 Express |
| CPU Socket | LGA 1700 |
| Processor Support | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® |
| Memory Support | 4 × DDR4 DIMM Slots, Up to 128GB |
| Memory Speed | DDR4 2133MHz – 5333MHz (OC) |
| Memory Architecture | Dual Channel |
| XMP Support | Yes |
| Integrated Graphics Outputs | 1 × HDMI 2.1 1 × DisplayPort 1.2 |
| Maximum Resolution | 4K @ 60Hz |
| Audio | Realtek® HD Audio, 7.1-Channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN |
| PCIe x16 Slot | 1 × PCIe 5.0 x16 |
| Additional PCIe Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 3 × M.2 PCIe 4.0 NVMe |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| Rear USB Ports | 1 × USB 3.2 Gen2 Type-A 1 × USB Type-C 2 × USB 3.2 Gen1 5 × USB 2.0 |
| Internal USB Headers | USB 3.2 Gen2 Type-C, USB 3.2 Gen1, USB 2.0 |
| RGB Support | 3 × Addressable RGB Gen2 Headers 1 × RGB Header |
| Cooling Headers | 6 Fan/Pump Headers |

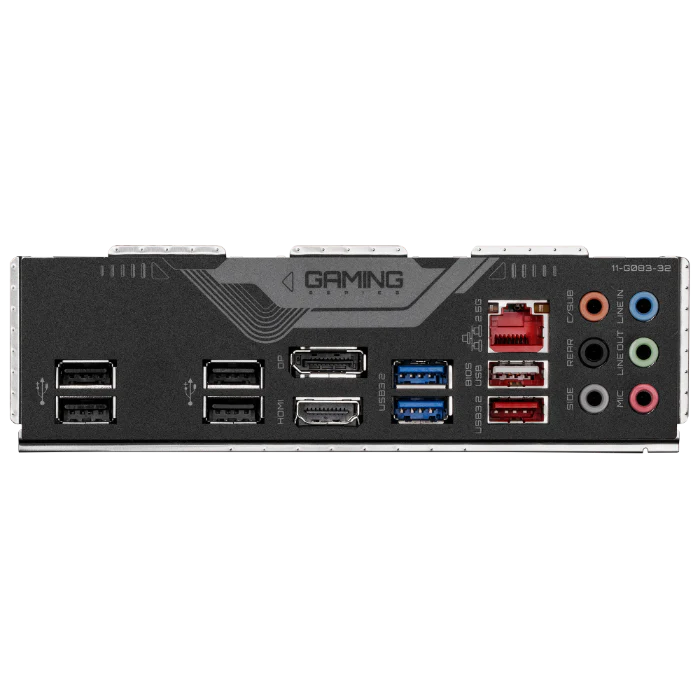

| Back Panel Connectors | HDMI, DisplayPort, RJ-45, 6 Audio Jacks, USB Ports |
| BIOS | 256 Mbit AMI UEFI BIOS |
| Special Features | Q-Flash Plus, GCC, Smart Backup |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | ATX (30.5 × 24.4 cm) |
