ANTEC AX90 ARGB Mid-Tower Case with integrated PSU G750 750W 80+ Gold certification delivers professional-grade performance and aesthetics. The mid-tower design accommodates standard ATX builds while ARGB lighting adds customizable visual appeal. The 750W Gold-rated power supply ensures efficient, stable power delivery for high-performance systems. Ideal for builders seeking a complete, reliable chassis solution with premium efficiency standards and modern lighting capabilities.
SPECIFICATIONS
| main spec |
| Dimensions |
473 x 210 x 486mm(DWH) |
| Form Factor |
Mid Tower |
| Materials |
Steel + Plastic |
| Mainboard Support |
ATX, M-ATX, ITX |
| Front Access & Controls |
Power,Reset, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , MIC / HD-AUDIO |
| Side Panel |
4MM Tempered glass |
|
| Drive Bays |
| Expansion Slots |
7 |
| 3.5" / 2.5" |
2 / 1 |
| 2.5" |
2 |
|
| Fan Support |
| Front |
3 x 120mm / 3 x 140mm |
| Top |
3 x 120mm / 2 x 140mm |
| Power supply |
2 x 120mm |
| Side |
2 x 120mm |
| Rear |
1 x 120mm |
| Included Fan(s) |
3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear |
|

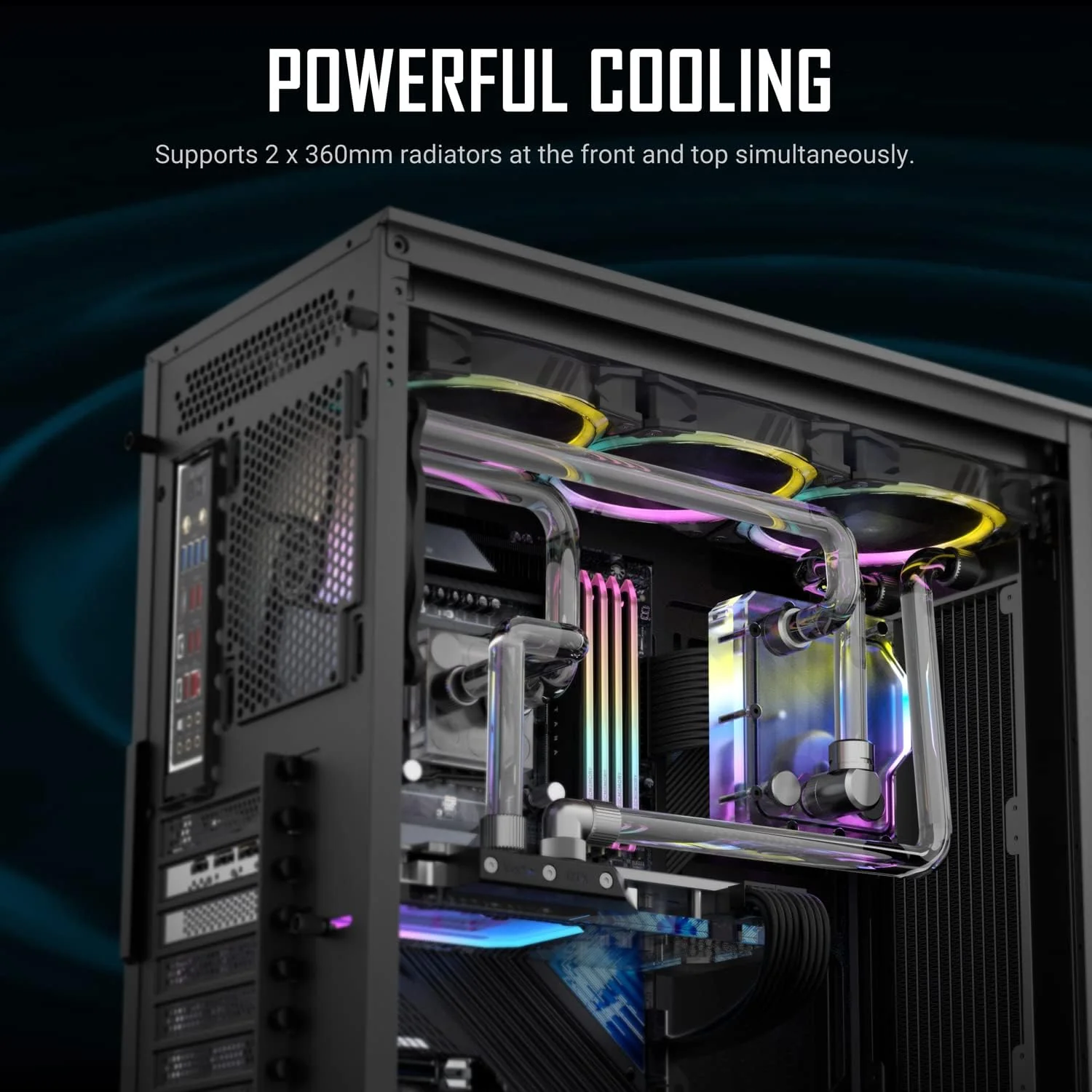

| Radiator Support |
| Front |
120 / 140 / 240 / 280 / 360mm |
| Top |
120 / 140 / 240 / 280 / 360mm |

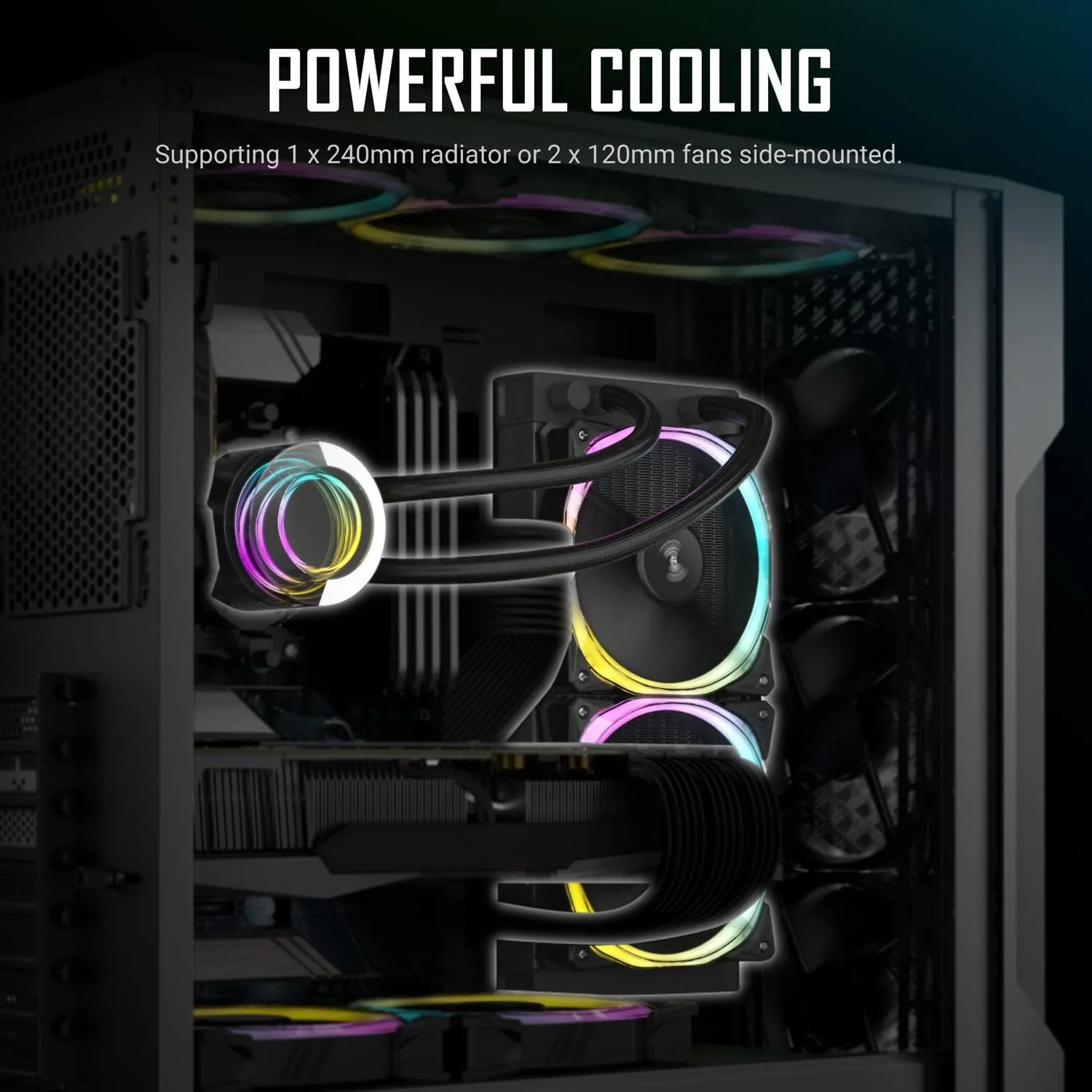

| Side |
120 / 240mm |
| Rear |
120mm |
|
| Clearance |

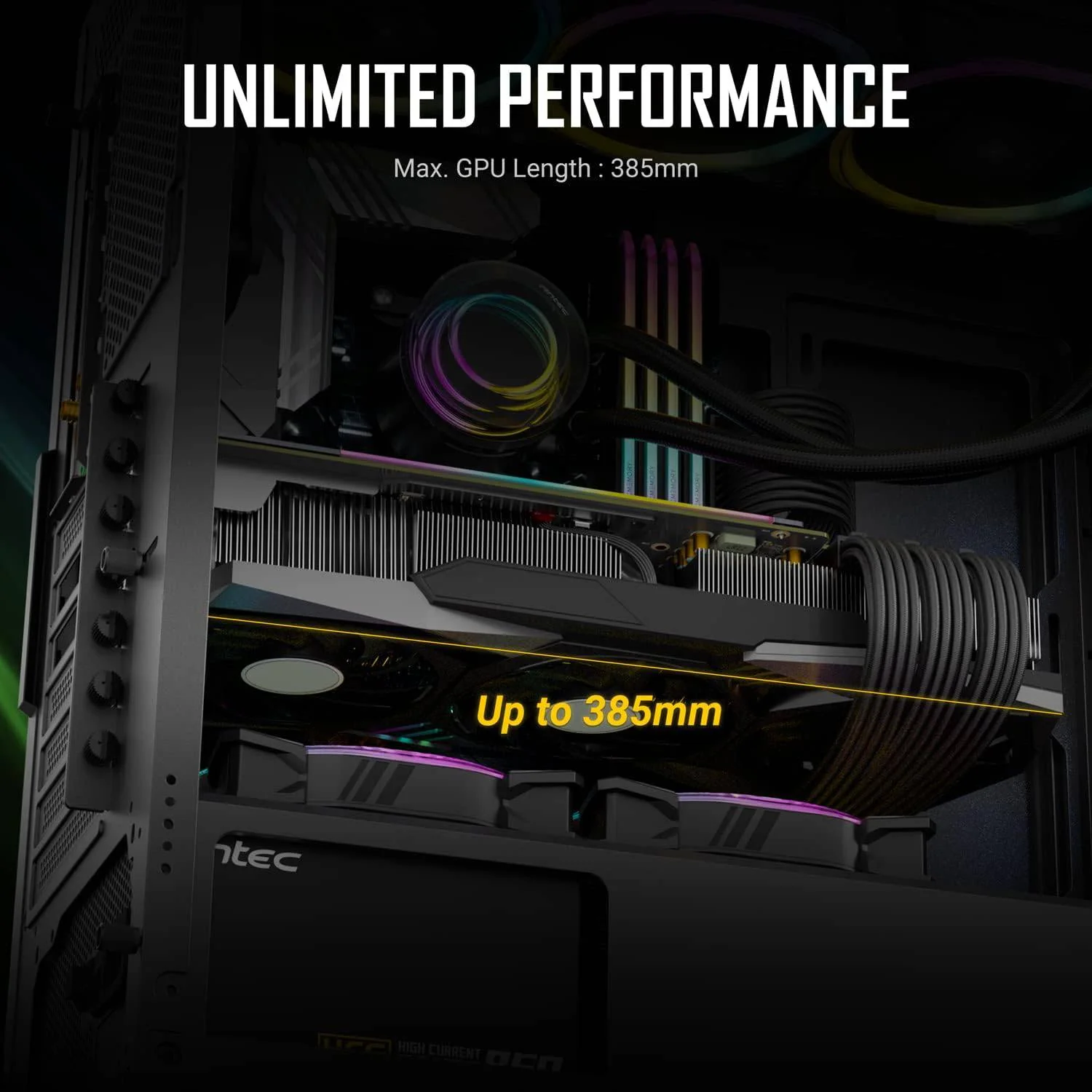

| Max GPU Length |
≤ 385mm |
| Max CPU Cooler Height |
≤ 160mm |
| Max PSU Length |
(Include cable) ≤ 220mm(with HDD)
(Include cable) ≤ 410mm(without HDD) |
|
| Miscellaneous |
| Dust Filter |
Front / Top / Bottom / Right Hand Side |
| Net Weight |
6.77 Kgs |
| Gross Weight |
7.93 Kgs |
|
